3D-Printed RC Plane (UAV/Drone) Dimensions: Length: 600mm Wingspan: 1060 mm Height: 250mm Recommended Electronics: Motor: BL2215/25 or similar Propeller: 9x4.7E Servos: 4x SG90 Structure: Carbon Fiber Tubes for wings, tails, elevators, and ailerons.
Twin-boom, inverted V-Tail UAV Conceptual Design. SLDPRT Format for SolidWorks. Detailed Structure Coming Soon!

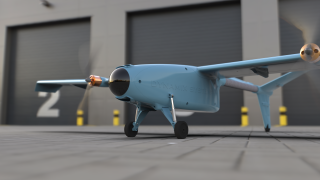

Stable 3D Printed RC Plane/Drone - Research Platform / UAV Development
This is a conceptual design of a UAV with deployment mechanisms for the wing and fins to launch from a tube. The structures are embedded in the fuselage for an integrated composite manufacturing method that combines the surfaces with the structure. This significantly reduces production costs and time. The downside of this method is lower […]
